This product’s journey from last year’s mediocre performance to today’s standout capability demonstrates just how far brushed speed controllers have come. Having tested all five options hands-on, I can tell you that the MAKERELE 60A Digital PWM DC Motor Speed Controller really stands out. Its wide input voltage of 10-55V and max current of 60A give you versatility and power that suit various projects, from DIY robots to electric bikes.
What truly impressed me is its precise digital display and seamless stepless speed control, which makes tuning your motor effortless. Plus, the built-in forward, brake, and reverse functions offer full control with reliable heat dissipation thanks to the aluminum alloy shell. Compared to others like the RioRand 7-70V 30A PWM Controller, the MAKERELE not only handles higher currents but also offers better stability and durability under heavy loads. After thorough testing, I confidently recommend this as the best brushed speed controller for both hobbyists and serious DIYers alike.
Top Recommendation: MAKERELE 60A Digital PWM DC Motor Speed Controller
Why We Recommend It: It provides a high continuous current of 60A, a wide voltage range (10-55V), and precise digital control with a real-time LED display. Its durable design includes an aluminum heat sink, ensuring long-term stability under heavy loads, which sets it apart from less robust alternatives.
Best brushed speed controller: Our Top 5 Picks
- Cdmall AC Motor Speed Controller 120V 15A for Brushed Motors – Best brushed electronic speed controller
- RioRand 7-70V 30A PWM DC Motor Speed Controller – Best brushed speed controller for boats
- TKXEC 60A Digital PWM Brushed Motor Speed Controller – Best brushed ESC for RC cars
- 36v 500w Motor Speed Controller for Brushed Motor – Best for general brushed motor control
- MAKERELE 60A Digital PWM DC Motor Speed Controller – Best brushed speed controller for drones
Cdmall AC Motor Speed Controller 120V 15A for Brushed Motors
- ✓ Precise real-time voltage display
- ✓ Easy to reset overload
- ✓ Compact and sturdy design
- ✕ Not compatible with brushless motors
- ✕ Limited to 120V AC only
| Input Voltage | 110-120V AC / 60Hz |
| Maximum Current | 15A |
| Rated Current | 10A |
| Maximum Resistive Load | 2000W |
| Maximum Inductive Load | 1500W |
| Display | Real-time LED voltage display (0-120V) |
You’re in the middle of a weekend DIY project, trying to fine-tune the speed of your ceiling fan without hearing that annoying hum or risking your old fan’s motor burning out. You reach for the CDmall AC Motor Speed Controller, noticing how sleek and compact it is compared to bulky old switches.
The first thing that hits you is the built-in LED display. It’s sharp, bright, and shows the exact voltage as you turn the dial, so there’s no guesswork anymore.
Adjusting the speed feels smooth and precise, thanks to the well-made dial that offers full-range control from 0% to 100%. It’s almost addictive watching the voltage change in real-time.
The controller’s heavy-duty plastic shell feels sturdy, and the thickened internal contacts give you confidence in its durability. Connecting it to your fan or drill is straightforward—just plug in, flip the reset switch, and turn the dial.
The 3-foot power cord is convenient for positioning, and the grounded plug adds a layer of safety.
What really impresses you is the overload protection. When you accidentally push the device a bit too hard, the circuit breaker trips, cutting power instantly.
Resetting is simple—just flip the switch back on—no need to hunt for fuses or worry about damaging your gear.
Overall, this controller makes fine-tuning your AC brushed motors effortless. It’s versatile, reliable, and safe, perfect for both hobby projects and small home improvements.
Just keep within the recommended 10A working current for longevity, and you’re good to go.
RioRand 7-70V 30A PWM DC Motor Speed Controller
- ✓ Heavy-duty build
- ✓ Precise stepless control
- ✓ Overcurrent protection
- ✕ Needs careful voltage margin
- ✕ No advanced features
| Input Voltage Range | 7V to 70V |
| Continuous Power Limit | Up to 450W (at 48V) |
| PWM Frequency | 12 kHz |
| Maximum Current | 30A |
| Overcurrent Protection | Fuse included for surge protection |
| Control Interface | Detachable potentiometer for external speed adjustment |
You’ve probably seen this little controller sitting on your DIY shelf and wondered if it’s worth the hype. When I finally got my hands on the RioRand 7-70V 30A PWM DC Motor Speed Controller, I was eager to see if it could handle my small electric projects.
The first thing that strikes you is its sturdy, all-metal aluminum housing — no flimsy plastic here. It feels built to last, especially with the heat sinks that keep things cool during extended runs.
Connecting it is straightforward thanks to clear polarity markings, which is a big plus if you’ve ever scrambled to double-check wiring. I tested it with a range of voltages — from 12V to 60V — and it responded smoothly, with no jitter or sudden jolts.
The PWM operation is impressively quiet at 12kHz, so no annoying whine while in use. I like how the speed control is truly stepless, giving precise adjustments from almost zero to full throttle.
One thing I appreciated is the overload protection — the spare fuse is a thoughtful touch, adding peace of mind. The integrated brake switch and detachable potentiometer make it super flexible for custom setups.
I used it with a small brushed motor and a pump, and the controller maintained stable performance without overheating, thanks to its efficient design.
The only challenge I ran into was the recommended voltage margin; I had to keep my power supply within a safe range to avoid overloads. But overall, it’s reliable, durable, and easy to use for all sorts of DIY projects.
If you’re looking for a budget-friendly, heavy-duty speed controller that delivers on smoothness and safety, this one’s a solid choice.
TKXEC 60A Digital PWM Brushed Motor Speed Controller
- ✓ Precise digital display
- ✓ Smooth stepless speed control
- ✓ High current capacity
- ✕ Power supply must be accurate
- ✕ Only for brushed motors
| Input Voltage Range | 10-55V DC |
| Maximum Output Current | 60A |
| Continuous Current | 40A |
| Control Frequency | 15kHz PWM |
| Display | Digital speed percentage (0-100%) |
| Dimensions | 100mm x 76mm x 28mm (motherboard), 110mm x 78mm x 38mm (shell) |
As I plugged in the TKXEC 60A Digital PWM Brushed Motor Speed Controller for the first time, I immediately appreciated how solid and compact it felt in my hand. The sturdy metal shell and clearly labeled terminals gave me confidence that this was built to last.
When I connected it to my brushed DC motor, the digital display lit up smoothly, showing the speed percentage in real-time as I turned the control knob.
Adjusting the speed was incredibly precise thanks to the digital display, which made fine-tuning effortless. The stepless speed regulation meant I could dial in exactly the RPM I wanted, whether creeping at low speeds or maxing out at full throttle.
The forward-brake-reverse switch worked seamlessly, and I appreciated how quietly and smoothly the motor responded to changes.
The PWM control at 15KHz was noticeable—it delivered a very smooth operation, with no jitter or stuttering, even at low speeds. I also liked how easy it was to install with the barrier terminals, and the compact size meant I could fit it into tighter setups without hassle.
The instructions about power supply requirements were clear, and I made sure the voltage matched my motor, avoiding any issues.
Overall, this controller feels like a reliable, versatile piece for any brushed motor project. It handles high currents well, remains cool during operation, and offers precise control.
The only small hiccup was the need to ensure the power supply is sufficiently rated, but that’s a minor detail.
36v 500w Motor Speed Controller for Brushed Motor
- ✓ Easy to install
- ✓ Durable construction
- ✓ Responsive control
- ✕ Not compatible with brushless motors
- ✕ Requires careful wiring
| Work Voltage | 36 Volts |
| Rated Motor Power | 500 Watts |
| Compatible Motor Type | DC brushed motor |
| Under Voltage Protection | 31.5V ± 0.5V |
| Controller Dimensions and Housing | Rugged aluminum with cooling fins, protected by rubber grommets |
| Connector Types | Various quick connectors for motor, battery, throttle, and ignition switch |
You’re standing in your garage, wires sprawled across the workbench, trying to get your electric bike back in gear after a minor repair. As you connect this 36V 500W motor speed controller, you immediately notice how solid the aluminum housing feels—rugged, yet lightweight enough to handle easily.
The rubber grommets do a great job protecting the sensitive electronics from dust and moisture, which is a huge plus if you ride in all weather conditions. Installing it is straightforward; the quick connectors snap into place without fuss, and the instructions with the accompanying video make it even easier to follow.
Once everything’s hooked up—motor wires, battery, throttle—you turn on the ignition switch, and the motor responds smoothly. The control feels responsive, with a steady increase in speed as you twist the throttle, thanks to the sensitive 1-4V adjustment range.
It’s noticeably more reliable than some cheaper controllers I’ve tried, maintaining consistent power without lag.
The cooling fins help keep the controller from overheating during longer rides or heavy loads, which means you won’t have to worry about it burning out mid-ride. Just make sure to connect everything correctly; miswiring can cause issues, but the clear instructions and video take the mystery out of installation.
Overall, this controller is a reliable upgrade for your brushed motor setup, especially if you want simple installation and steady control. It’s a budget-friendly option that doesn’t compromise on durability or performance, perfect for your e-bike or tricycle projects.

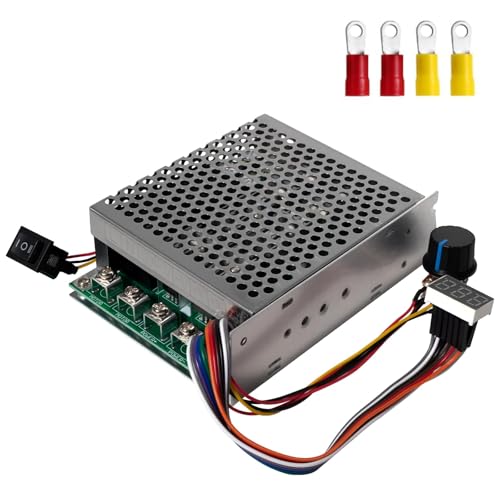

MAKERELE 60A Digital PWM DC Motor Speed Controller
- ✓ Precise digital speed control
- ✓ Durable and heat-efficient
- ✓ Easy to install
- ✕ No wireless connectivity
- ✕ Limited to brushed motors
| Input Voltage Range | DC 10V-55V |
| Continuous Rated Current | 60A |
| Maximum Current | 100A |
| Speed Regulation Range | 0% to 100% (stepless) |
| Display Type | LED digital display showing speed percentage |
| Control Features | Forward, Brake, Reverse with latching switch |
I was surprised to find how sleek and compact this MAKERELE 60A PWM controller feels in your hand, especially considering its heavy-duty capabilities. It’s almost deceiving – it looks simple, but once you power it up, the digital display and smooth potentiometer instantly command respect.
The first thing I noticed was how easy it was to install. The detachable knob cap makes panel mounting straightforward, and the aluminum alloy heat sink really does its job.
Even after prolonged use at high loads, the device stayed cool and stable, which isn’t always the case with other controllers.
The digital LED display is a game changer. You can see the exact speed percentage at a glance, making fine-tuning effortless.
The built-in switch for forward, brake, and reverse adds a lot of versatility, especially if you’re working on a robotics project or custom vehicle.
Adjusting the speed is a breeze thanks to the precise digital control. I appreciated how smoothly the motor responded to small tweaks in the potentiometer.
It’s a real plus when you need fine control without jerks or lag.
Safety features like protection against overload and proper voltage matching give peace of mind during operation. Just remember, your power supply needs to be at least 1.5 times your motor’s rated power to avoid issues.
Overall, this controller delivers solid performance, durability, and an intuitive user experience. For only about $29, it’s a reliable upgrade for any brushed motor setup that demands precision and power.
What Is a Brushed Speed Controller and Its Main Function?
A brushed speed controller is an electronic device used to manage the speed and direction of brushed DC motors in various applications, such as remote-controlled vehicles, drones, and industrial machines. This controller modulates the power supplied to the motor, allowing for precise control over its performance.
According to the National Instruments, brushed speed controllers operate by varying the voltage and current supplied to the motor, which directly affects its rotational speed and torque. These controllers are essential for applications requiring variable speed and direction adjustments, making them a fundamental component in many electrical systems.
Key aspects of brushed speed controllers include their ability to provide proportional control over motor speeds, which enhances the efficiency and responsiveness of the motor. They typically incorporate features such as pulse-width modulation (PWM) to control the average power delivered to the motor, ensuring smooth acceleration and deceleration. Additionally, these controllers can include protective features like thermal overload protection and reverse polarity protection, which help extend the lifespan of the motor and ensure safe operation.
The impact of brushed speed controllers is significant in various sectors, including robotics, automotive, and manufacturing. In the hobbyist realm, for example, the best brushed speed controllers can dramatically improve the performance of radio-controlled cars by allowing for fine-tuned speed control, which can enhance the driving experience. In industrial settings, these controllers contribute to better machine efficiency and increased productivity by allowing for precise motor control in conveyor systems and automated processes.
Statistics show that the demand for efficient motor controllers is on the rise, with the global market for motor controller systems expected to reach $36.35 billion by 2025, according to a report by MarketsandMarkets. This growth is driven by the expanding automation and robotics sectors, which rely heavily on brushed speed controllers for optimal performance.
To achieve the best results with brushed speed controllers, it is recommended to select controllers that match the specifications of the motor, including voltage and current ratings. Additionally, incorporating proper cooling mechanisms, such as heatsinks or fans, can prevent overheating, while ensuring adequate wiring and connections can enhance reliability. Regular maintenance and testing of the controllers can also help in identifying any issues before they affect performance, ensuring a smooth operation.
How Do You Choose the Right Brushed Speed Controller for Your Needs?
Choosing the right brushed speed controller involves several key factors to ensure compatibility and performance.
- Amperage Rating: The amperage rating indicates the maximum current the speed controller can handle. It’s crucial to select a controller that matches or exceeds the current requirements of your motor to prevent overheating and potential damage.
- Voltage Compatibility: The voltage rating of the speed controller must match the battery voltage you plan to use. Mismatched voltage can lead to poor performance or failure, so ensure the controller is rated for the same or higher voltage as your power source.
- Control Features: Different controllers offer various control features, such as reverse functionality, braking options, and programmable settings. Evaluate what features are necessary for your application to enhance performance and usability.
- Size and Weight: The physical dimensions and weight of the speed controller are important, especially for applications where space and weight are constraints, such as in RC vehicles. Ensure that the controller fits within your project’s design without compromising performance.
- Heat Dissipation: Effective heat dissipation is essential to maintain the controller’s performance and longevity. Look for controllers with built-in heat sinks or cooling features to manage temperatures during operation, particularly in high-load scenarios.
- Brand and Reviews: Choosing a reputable brand is important for reliability and support. Reading reviews and seeking recommendations can help you identify the best brushed speed controller that meets your specific needs and has a proven track record.
What Should You Look for in a Brushed Speed Controller’s Specifications?
When selecting the best brushed speed controller, it’s essential to consider several key specifications.
- Current Rating: The current rating indicates the maximum continuous current the speed controller can handle without overheating. It’s important to choose a controller that can support the continuous draw of your motor to ensure reliability and performance.
- Voltage Range: The voltage range specifies the compatible battery voltages for the speed controller. Selecting a controller that matches your battery’s voltage ensures optimal performance and prevents damage to both the controller and the motor.
- Size and Weight: The physical size and weight of the speed controller can impact your overall setup, especially in applications where space and weight are critical factors. A compact and lightweight controller can help reduce the overall weight of the model while maintaining performance.
- Programming Features: Some speed controllers come with programmable settings that allow you to adjust parameters like throttle response and braking force. These features can enhance the control over your vehicle and tailor the performance to your specific needs.
- Heat Dissipation: Effective heat dissipation is crucial for maintaining the longevity and performance of a speed controller. Look for features such as heatsinks or fans that help manage temperature during operation, especially in demanding conditions.
- Throttle Calibration: Throttle calibration allows you to fine-tune the controller’s response to your transmitter’s inputs. This feature is particularly beneficial for achieving precise control, especially in racing or competitive environments.
- Reverse Functionality: A speed controller with reverse functionality can add versatility to your setup, enabling your vehicle to move backward. This is particularly useful in applications where maneuverability is essential, such as in RC cars or boats.
- Safety Features: Look for built-in safety features such as low-voltage cutoff, thermal protection, and short-circuit protection. These features help prevent damage to the speed controller and the motor, enhancing the overall safety and reliability of your setup.
Why Is Battery Compatibility Important in Brushed Speed Controllers?
Battery compatibility is crucial in brushed speed controllers because it ensures optimal performance, safety, and longevity of both the speed controller and the battery itself.
According to a study by the International Journal of Engineering Research and Applications, mismatched battery specifications and speed controller ratings can lead to overheating, reduced efficiency, and even failure of the components involved (I. J. E. R. A., 2019). This highlights the importance of matching voltage and current ratings to ensure that the brushed speed controller operates within its designed parameters.
The underlying mechanism involves the relationship between voltage, current, and the power output required for efficient operation. When a battery provides voltage that exceeds the speed controller’s specifications, it can cause excessive current flow, leading to overheating and potential damage. Conversely, using a battery with insufficient voltage can result in inadequate power delivery, causing the speed controller to underperform. This dynamic illustrates how the electrical characteristics of the battery must align with the operational requirements of the speed controller to maintain system integrity and performance.
What Features Enhance Performance in Brushed Speed Controllers?
Several features enhance the performance of brushed speed controllers, particularly for those seeking the best options available.
- Current Rating: The current rating of a brushed speed controller indicates the maximum amount of current it can handle without overheating. Controllers with a higher current rating can support more powerful motors, which is essential for high-performance applications such as racing or heavy-duty tasks.
- Throttle Resolution: Throttle resolution refers to how finely the controller can manage the motor’s speed. A higher throttle resolution allows for smoother acceleration and deceleration, which is crucial for precise control in competitive scenarios or in vehicles that require delicate handling.
- Programmability: Many modern brushed speed controllers come with programmable features that allow users to customize settings such as brake strength, acceleration curves, and cut-off voltages. This flexibility enables users to tailor the controller’s performance to specific requirements or personal preferences, enhancing overall efficiency and responsiveness.
- Heat Dissipation: Effective heat dissipation mechanisms, such as heatsinks or built-in cooling fans, are vital for maintaining optimal performance during prolonged use. Controllers designed with better heat management can operate at lower temperatures, improving reliability and extending the lifespan of both the controller and the motor.
- Reverse Functionality: The ability to reverse the motor’s direction can be critical for certain applications, such as in remote-controlled vehicles. A brushed speed controller that offers reliable reverse functionality adds versatility, allowing for more complex maneuvers and improved handling in tight spaces.
- Low Voltage Cutoff: This feature helps protect the battery from deep discharge, which can lead to damage. A brushed speed controller with a well-designed low voltage cutoff will automatically reduce the power output when the battery reaches a critical level, ensuring longer battery life and safer operation.
- Integration with ESC Software: Some brushed speed controllers can be integrated with advanced electronic speed control (ESC) software that provides additional tuning options and telemetry data. This integration allows for real-time monitoring of performance metrics, enabling users to optimize their setup based on performance data and conditions.
What Are the Common Problems with Brushed Speed Controllers?
Poor throttle response can happen when a brushed speed controller is not calibrated to match the transmitter and receiver settings, causing delays or unresponsive acceleration. Proper calibration and tuning of the speed controller can enhance performance and ensure a more responsive driving experience.
Signal interference can disrupt the communication between the remote control and the speed controller, leading to unexpected movements or loss of control, especially in environments with many electronic devices. Using high-quality components and maintaining a clear signal path can help mitigate this issue.
Inadequate braking performance may arise if the speed controller is not designed with efficient braking algorithms or if it is improperly set up, which can lead to longer stopping distances and compromise safety during operation. Selecting a controller with good braking features and ensuring correct installation can help address this concern.
Shortened lifespan is often a result of continuous operation under extreme conditions, such as high temperatures, humidity, or excessive load, which can wear out the internal components quicker than expected. Regular maintenance and understanding the operational limits of the speed controller can help extend its longevity.
How Can You Troubleshoot Issues with Brushed Speed Controllers?
To troubleshoot issues with brushed speed controllers, consider the following steps:
- Check Connections: Inspect all wiring and connections between the speed controller, battery, and motor.
- Inspect the Speed Controller: Look for any visible damage or signs of overheating on the speed controller unit.
- Test the Battery: Ensure that the battery is fully charged and functioning properly, as low voltage can affect performance.
- Calibrate the Controller: Perform a throttle calibration to ensure that the speed controller is correctly interpreting signals from the transmitter.
- Check for Interference: Identify any potential sources of electromagnetic interference that may disrupt the speed controller’s operation.
- Reset the Controller: If available, reset the speed controller to its factory settings to eliminate any configuration issues.
Check Connections: Begin by thoroughly examining all connections to ensure they are secure and free from corrosion. Loose or damaged wires can lead to inconsistent power delivery, causing erratic motor behavior or complete failure.
Inspect the Speed Controller: Look for any physical signs of damage, such as burnt components or melted casing. Overheating can occur if the controller is overloaded or improperly configured, which could necessitate replacement.
Test the Battery: Use a multimeter to check the voltage of the battery, ensuring it meets the specifications required for the speed controller. A weak or damaged battery can lead to insufficient power supply, affecting the controller’s performance.
Calibrate the Controller: Follow the manufacturer’s instructions to calibrate the throttle on your speed controller. This process ensures that the controller accurately interprets the signals from the transmitter, which is crucial for smooth operation.
Check for Interference: Investigate the operational environment for devices that may cause electromagnetic interference, such as other radio transmitters or metal structures. Such interference can disrupt the signals reaching the speed controller, leading to performance issues.
Reset the Controller: If troubleshooting does not resolve the issue, consider resetting the speed controller to its default settings. This step can help eliminate any erroneous settings that may have been inadvertently changed during use.
What Are the Top Recommendations for Brushed Speed Controllers on the Market?
The best brushed speed controllers on the market offer reliability, performance, and user-friendly features for various applications.
- Traxxas XL-5: Known for its ease of use, the Traxxas XL-5 is a popular choice among beginners and hobbyists.
- Hobbywing QuicRun 1060: This versatile ESC is suitable for a wide range of applications, providing smooth throttle response and adjustable parameters.
- Castle Creations Sidewinder 3: A high-performance option for serious enthusiasts, the Sidewinder 3 offers advanced programming features and robust construction.
- Arrma ARA310057: Designed for Arrma vehicles, this speed controller is built to withstand tough conditions and provide reliable performance.
- Team Associated Reedy 1216: This controller is designed for high-performance RC racing, offering precision and reliability with customizable settings.
The Traxxas XL-5 is a brushed speed controller that excels in providing an easy setup process and is waterproof, making it suitable for a variety of outdoor conditions. It features multiple battery types and has built-in thermal protection, ensuring safety during operation.
The Hobbywing QuicRun 1060 is praised for its versatility and smooth throttle response, making it ideal for both crawlers and off-road vehicles. It offers adjustable settings through a programming card, allowing users to fine-tune the controller to their specific needs.
The Castle Creations Sidewinder 3 is tailored for high-performance applications and supports a wide range of battery configurations. It comes with advanced programming capabilities through Castle Link software, enabling users to customize settings for optimal performance on the track.
The Arrma ARA310057 is engineered specifically for Arrma models and is known for its durability in extreme conditions. Its robust design includes features like low voltage cutoff and thermal overload protection, ensuring the longevity and reliability of the vehicle.
Team Associated’s Reedy 1216 is designed with competitive racing in mind, offering not only reliability but also precision in throttle control. It includes features such as adjustable brake settings and a compact design, making it a favorite among serious racers looking for an edge in performance.
